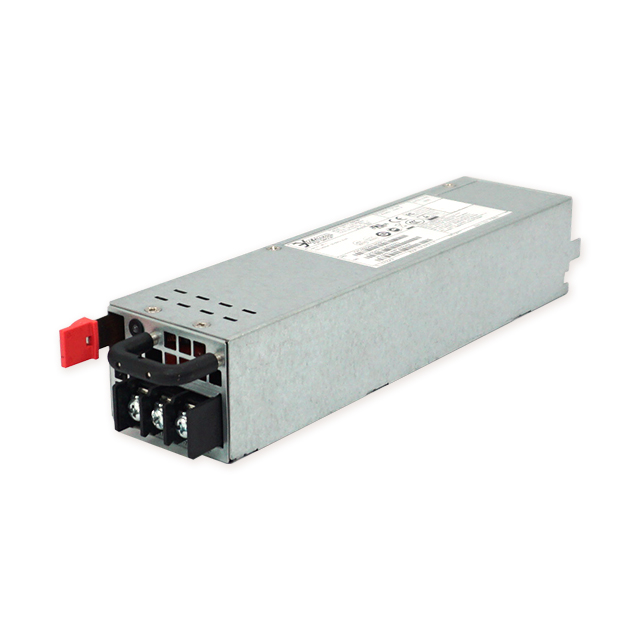

YVIC0600CM-2A00N01






Feature
- 195.0 (L) x 50.5 (W) x 39.0 (H) mm
- N+1 Redundant
- Support PMBus 1.2
- Application for IPC/Storage/Embedded server/Networking
Introduction
This industrial power supply with efficiency 85% and comes to offer the total power capacity up to 600 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.


Content
INPUT | |
Input Voltage | -36- -72VDC |
Input Current | 25.0A / -36VDC, 12.0A / -72VDC |
Inrush Current | 100A max at -72VDC |
Earth Leakage Current |
GENERAL | |
Efficiency | 85% at Max load of -48VDC |
Power Density | |
MTBF | 100 kHrs per Telcordia SR-332 at 25°C ambient |
ENVIRONMENTAL | |
Operating Temperature | 0 to 50°C |
Operating Humidity | 85% RH, Non-condensing |
Storage Temperature | -40°C to +70 °C |
Operating Altitude | Sea level to 5,000 M |
Shock Operating | 10G, no malfunction |
Non-Operating | 50G Trapezoidal Wave, Velocity change 4.3m/sec |
Vibration Operating | 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz |
Non-Operating | 0.02G²/Hz form 20Hz to 1kHz |
EMC & SAFETY | |
Emissions | EN55032, class A Conducted EN55032, class A Radiated |
Harmonic Currents | N/A |
Voltage Flicker | EN61000-3-3 |
EFT/Burst | EN61000-4-4 |
Surge | EN61000-4-5 |
Conducted Immunity | EN61000-4-6 |
Safety Approvals | UL/cUL, TUV, CB, CE, CCC, FCC |
Output | Minimum Load | Maximum Load | Condition | Ripple & Noise |
+12V | 0A | 50A | 120mV p-p | |
+5Vsb | 0A | 3.0A | 50mV p-p |
