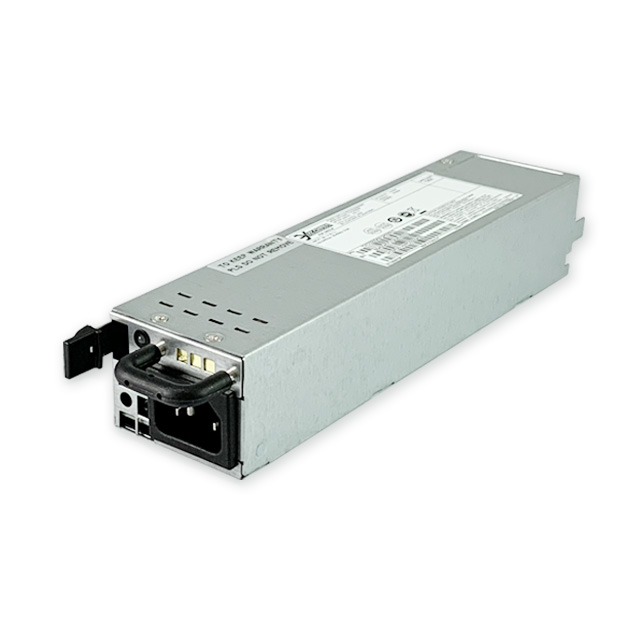

YVIC0600BM-2A00P10

ULTUVCBCECCCFCC

Feature

  • 205.0 (L) x 50.5 (W) x 39.0 (H) mm
  • N+1 Redundant
  • Support PMBus 1.2
  • No Minimum Load Required
  • Application for IPC/Storage/Embedded server/Networking

Introduction

This industrial power supply with efficiency 94% and comes to offer the total power capacity up to 600 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.

Platinum PMBus1.2

Content



INPUT
Input Voltage 90-264VAC
Input Frequency 47-63Hz
Input Current 8-4A / 90-264VAC
Inrush Current 75A max at 264VAC
Power Factor 0.95 at 115VAC / 60Hz,0.93 at 230V / 50Hz
Earth Leakage Current 1.5mA max at 240VAC / 50Hz



GENERAL
Efficiency 80 Plus PLATINUM certified,Highest efficiency 94% at 230VAC
Power Density
MTBF 100 kHrs per Telcordia SR-332 at 25°C ambient



ENVIRONMENTAL
Operating Temperature 0 to 50°C
Operating Humidity 85% RH, Non-condensing
Storage Temperature -40°C  to +70 °C
Operating Altitude Sea level to 5,000 M
Shock Operating 5G, no malfunction
Non-Operating 30G, no damage
Vibration Operating 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz
Non-Operating 0.02G²/Hz form 20Hz to 1kHz



EMC & SAFETY
Emissions EN55022, class A Conducted
EN55022, class A Radiated
Harmonic Currents EN61000-3-2
Voltage Flicker EN61000-3-3
EFT/Burst EN61000-4-4
Surge EN61000-4-5
Conducted Immunity EN61000-4-6
Safety Approvals UL/cUL, TUV, CB, CE, CCC, FCC



Output Minimum Load Maximum Load Condition Ripple & Noise
+12V 0A 50A   120mV p-p
+5Vsb 0A 3.0A 50mV p-p
