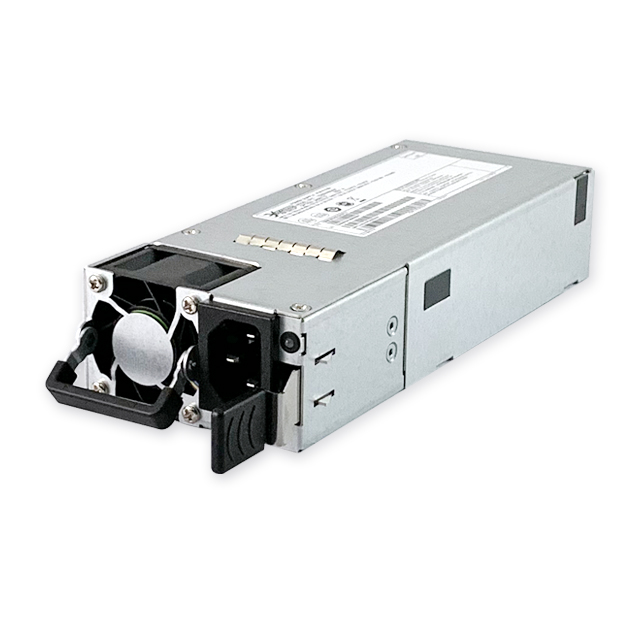

YSEF2000EM-2A00P10

ULTUVCBCECQCFCC

Feature

  • 185.0 (L) x 73.5 (W) x 39.0 (H) mm
  • N+1 Redundant
  • Support PMBus 1.2
  • Application for IPC/Storage/Embedded server/Networking

Introduction

This industrial power supply with efficiency 94% and comes to offer the total power capacity up to 2000 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.

PMBus1.2

Content



INPUT
Input Voltage 90-132VAC @1000W
180-264VAC/180-310VDC @1800W
198-264VAC/198-310VDC @2000W
Input Frequency 47-63Hz
Input Current 13A / 90-132VAC,10A / 180-264VAC,10A / 180-310VDC
Inrush Current 35A max at 240VAC
Power Factor 0.98 at 115VAC / 60Hz,0.98 at 230VAC / 50Hz
Earth Leakage Current 0.75mA max at 264VAC / 60Hz



GENERAL
Efficiency Highest efficiency 94% at 230VAC
Power Density
MTBF 100 kHrs per Telcordia SR-332 at 25°C ambient



ENVIRONMENTAL
Operating Temperature -20 to 50°C
Operating Humidity 5 - 85%, Non-condensing
Storage Temperature -40°C  to +70 °C
Operating Altitude Sea level to 5,000 M
Shock Operating 30G, 11mSec, half sine 3 axes
Non-Operating TBD
Vibration Operating 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz
Non-Operating 0.02G²/Hz at 20Hz, 0.02G²/Hz at 1kHz



EMC & SAFETY
Emissions EN55032, class A Conducted
EN55032, class A Radiated
Harmonic Currents EN61000-3-2
Voltage Flicker EN61000-3-3
EFT/Burst EN61000-4-4
Surge EN61000-4-5
Conducted Immunity EN61000-4-6
Safety Approvals UL/cUL, TUV, CB, CE, CQC, FCC



Output Minimum Load Maximum Load Condition Ripple & Noise
+12.2V 0.5A 81A @1000W
146A @1800W
162A @2000W
  120mV p-p
+12Vsb 0A 2.0A 120mV p-p
