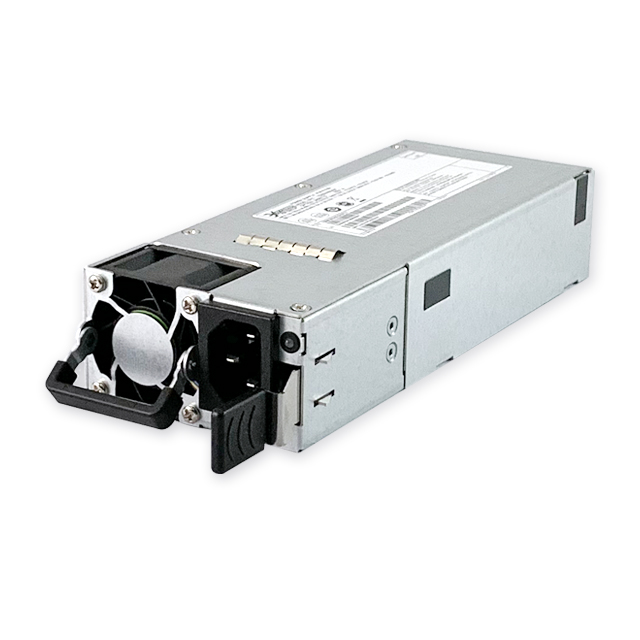

YSEF1600EM-2A00P10
Feature
- 185.0 (L) x 73.5 (W) x 39.0 (H) mm
- N+1 Redundant
- Support PMBus 1.2
- Application for IPC/Storage/Embedded server/Networking/AI server
Introduction
This industrial power supply with 80 PLUS® Platinum and comes to offer the total power capacity up to 1600 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.
Content
| INPUT | |
| Input Voltage | 90-132VAC @1000W 180-264VAC/180-310VDC @1600W |
| Input Frequency | 47-63Hz |
| Input Current | 13A / 90-132VAC,10A / 180-264VAC,10A / 180-310VDC |
| Inrush Current | 35A max at 240VAC |
| Power Factor | 0.98 at 115VAC / 60Hz,0.98 at 230VAC / 50Hz |
| Earth Leakage Current | 0.75mA max at 264VAC / 60Hz |
| GENERAL | |
| Efficiency | 80 Plus PLATINUM certified,Highest efficiency 94% at 230VAC |
| Power Density | |
| MTBF | 100 kHrs per Telcordia SR-332 at 25°C ambient |
| ENVIRONMENTAL | |
| Operating Temperature | -20 to 50°C |
| Operating Humidity | 5 - 85%, Non-condensing |
| Storage Temperature | -40°C to +70 °C |
| Operating Altitude | Sea level to 5,000 M |
| Shock Operating | 30G, 11mSec, half sine 3 axes |
| Non-Operating | TBD |
| Vibration Operating | 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz |
| Non-Operating | 0.02G²/Hz at 20Hz, 0.02G²/Hz at 1kHz |
| EMC & SAFETY | |
| Emissions | EN55032, class A Conducted EN55032, class A Radiated |
| Harmonic Currents | EN61000-3-2 |
| Voltage Flicker | EN61000-3-3 |
| EFT/Burst | EN61000-4-4 |
| Surge | EN61000-4-5 |
| Conducted Immunity | EN61000-4-6 |
| Safety Approvals | UL/cUL, TUV, CB, CE, CQC, FCC |
| Output | Minimum Load | Maximum Load | Condition | Ripple & Noise |
| +12.2V | 0.5A | 81A @1000W 130A @1600W |
120mV p-p | |
| +12Vsb | 0A | 2.0A | 120mV p-p |
