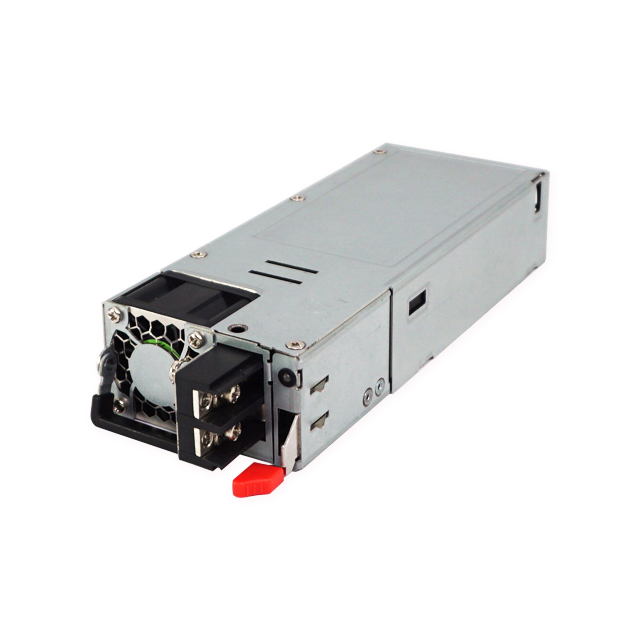

YSEF0850DM-2A00N01
Feature
- 185.0 (L) x 73.5 (W) x 39.0 (H) mm
- N+1 Redundant
- Support PMBus 1.2
- No Minimum Load Required
- Application for IPC/Storage/Embedded server/Networking
Introduction
This industrial power supply comes to offer the total power capacity up to 850 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.
Content
| INPUT | |
| Input Voltage | -40- -72VDC |
| Input Current | 30A / -40- -72VDC |
| Inrush Current | 80A max at -48VDC |
| Earth Leakage Current |
| GENERAL | |
| Efficiency | 92% |
| Power Density | 26.2W/in³ |
| MTBF | 100 kHrs per Telcordia SR-332 at 25°C ambient |
| ENVIRONMENTAL | |
| Operating Temperature | -20 to 55°C |
| Operating Humidity | 95% RH, Non-condensing |
| Storage Temperature | -40°C to +70 °C |
| Operating Altitude | Sea level to 5,000 M |
| Shock Operating | 30G, 11mSec, half sine 3 axes |
| Non-Operating | TBD |
| Vibration Operating | 0.00046G²/Hz at 10Hz, 0.0052G²/Hz at 30Hz |
| Non-Operating | 0.0052G²/Hz at 200Hz, 0.0001G²/Hz at 500Hz |
| EMC & SAFETY | |
| Emissions | EN55032, class A Conducted EN55032, class A Radiated |
| Harmonic Currents | EN61000-3-2 |
| Voltage Flicker | EN61000-3-3 |
| EFT/Burst | EN61000-4-4 |
| Surge | EN61000-4-5 |
| Conducted Immunity | EN61000-4-6 |
| Safety Approvals | UL/cUL, TUV, CB, CE, CCC, FCC |
| Output | Minimum Load | Maximum Load | Condition | Ripple & Noise |
| +12V | 0.5A | 70.83A | 120mV p-p | |
| +12Vsb | 0A | 2.1A | 120mV p-p |
