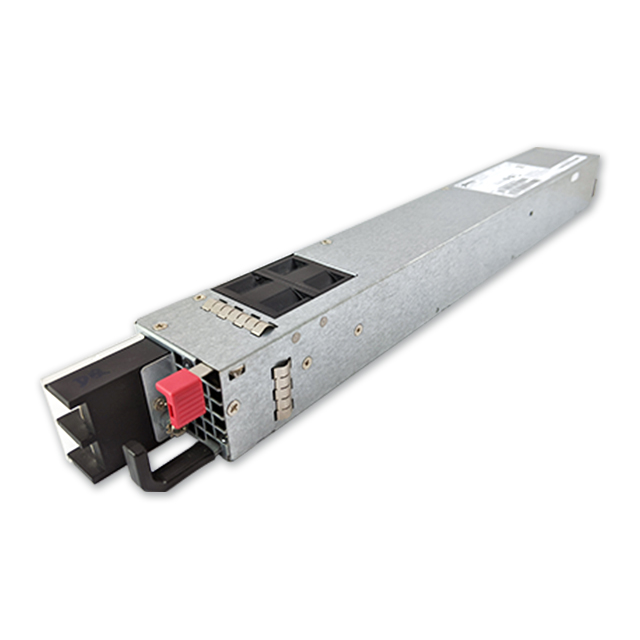

YSEC2000EM-2A00N01
Feature
- 360.0 (L) x 50.5 (W) x 40.0 (H) mm
- N+1 Redundant
- Support PMBus 1.2
- NEBS level3 apply,GR1089
- Application for IPC/Storage/Embedded server/Networking
Introduction
This industrial power supply with efficiency 91% and comes to offer the total power capacity up to 2000 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.
Content
| INPUT | |
| Input Voltage | -40- -72VDC |
| Input Current | 60.0A / -40VDC, 33.0A / -72VDC |
| Inrush Current | 100A max at -72VDC |
| Earth Leakage Current |
| GENERAL | |
| Efficiency | 91% at Max load of -48VDC |
| Power Density | 48.3W/in³ |
| MTBF | 100 kHrs per Telcordia SR-332 at 25°C ambient |
| ENVIRONMENTAL | |
| Operating Temperature | -5 to 50°C |
| Operating Humidity | 90% RH, Non-condensing |
| Storage Temperature | -40°C to +70 °C |
| Operating Altitude | Sea level to 5,000 M |
| Shock Operating | 30G, 11mSec, half sine 3 axes |
| Non-Operating | TBD |
| Vibration Operating | 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz |
| Non-Operating | 0.02G²/Hz form 20Hz to 1kHz |
| EMC & SAFETY | |
| Emissions | EN55032, class A Conducted EN55032, class A Radiated |
| Harmonic Currents | EN61000-3-2 |
| Voltage Flicker | EN61000-3-3 |
| EFT/Burst | EN61000-4-4 |
| Surge | EN61000-4-5 GR1089 1K/1K |
| Conducted Immunity | EN61000-4-6 |
| Safety Approvals | UL/cUL, TUV, CB, CE, CQC, FCC |
| Output | Minimum Load | Maximum Load | Condition | Ripple & Noise |
| +12.2V | 0A | 164A | 120mV p-p | |
| +5Vsb | 0A | 5.0A | 50mV p-p |
