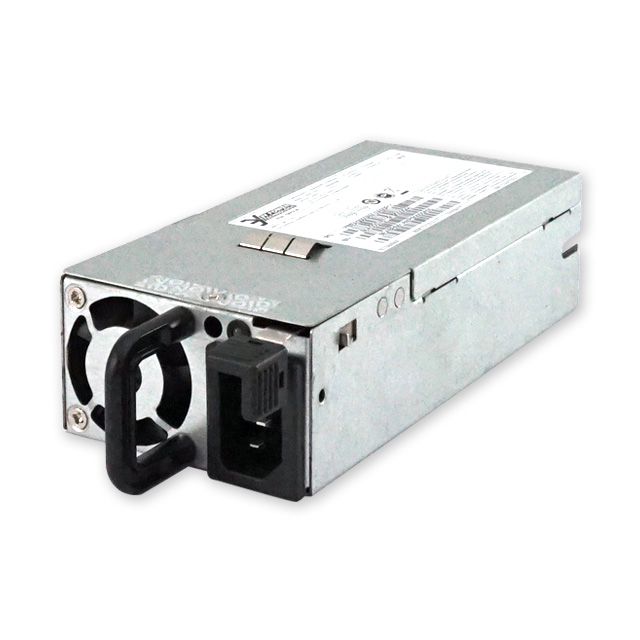

YSEA0550AM-2A00P10
Feature
- 145.0 (L) x 68.0 (W) x 39.0 (H) mm
- N+1 Redundant
- Support PMBus 1.2
- Application for IPC/Storage/Embedded server/Networking
Introduction
This industrial power supply with 80 PLUS® Platinum and comes to offer the total power capacity up to 550 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.
Content
| INPUT | |
| Input Voltage | 90-264VAC,164-310VDC |
| Input Frequency | 47-63Hz |
| Input Current | 8.5A / 90VAC,8A / 100-127VAC,4.5A / 180VAC,4A / 200-240VAC,2.8A / 264VAC,2.75A / 240VDC |
| Inrush Current | 35A max at 240VAC |
| Power Factor | 0.95 at 115VAC / 60Hz,0.95 at 230VAC / 50Hz |
| Earth Leakage Current | 1.0mA max for each power supply at 264Vac/60Hz |
| GENERAL | |
| Efficiency | 80 Plus PLATINUM certified,Highest efficiency 94% at 230VAC |
| Power Density | |
| MTBF | 100 kHrs per Telcordia SR-332 at 25°C ambient |
| ENVIRONMENTAL | |
| Operating Temperature | -20 to 50°C |
| Operating Humidity | 5 - 85%, Non-condensing |
| Storage Temperature | -40°C to +70 °C |
| Operating Altitude | Sea level to 5,000 M |
| Shock Operating | 10G, no malfunction |
| Non-Operating | 50G Trapezoidal Wave, Velocity change 4.3m/sec |
| Vibration Operating | 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz |
| Non-Operating | 0.02G²/Hz at 20Hz, 0.02G²/Hz at 1kHz |
| EMC & SAFETY | |
| Emissions | EN55022, class A Conducted EN55022, class A Radiated |
| Harmonic Currents | EN61000-3-2 |
| Voltage Flicker | EN61000-3-3 |
| EFT/Burst | EN61000-4-4 |
| Surge | EN61000-4-5 |
| Conducted Immunity | EN61000-4-6 |
| Safety Approvals | UL/cUL, TUV, CB, CE, CCC, FCC |
| Output | Minimum Load | Maximum Load | Condition | Ripple & Noise |
| +12V | 0.5A | 45.88A | 120mV p-p | |
| +12Vsb | 0A | 2.5A | 120mV p-p |
