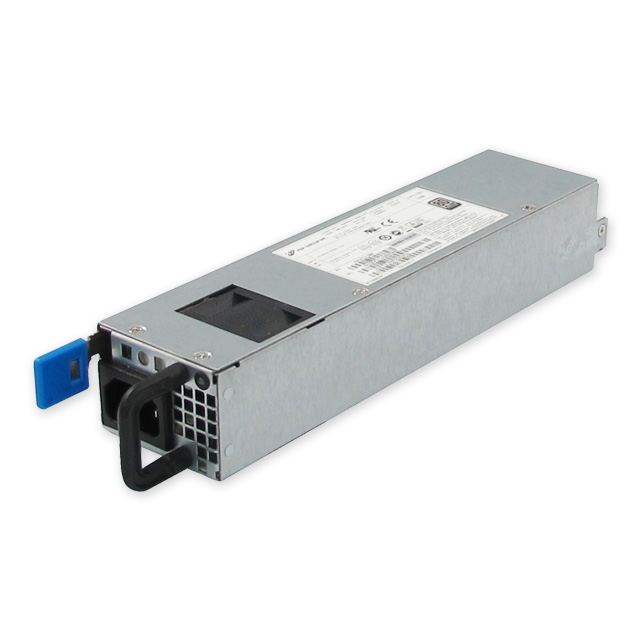

YM-2501QAR

ULTUVCBCECCCFCC

Feature

  • 220.0 (L) x 54.5 (W) x 40.0 (H) mm
  • N+1 Redundant
  • Support PMBus 1.2
  • Application for IPC/Storage/Embedded server/Networking

Introduction

Platinum PMBus1.2

Content



INPUT
Input Voltage 90-264VAC,164-300VDC
Input Frequency 47-63Hz
Input Current 8.0A / 115VAC, 4.0A / 230VAC, 4A / 240VDC
Inrush Current 35A max at 264VAC
Power Factor 0.99/115VAC,0.99/230VAC
Earth Leakage Current 3.5mA max at 240VAC / 50Hz



GENERAL
Efficiency 80 PLUS Platinum
Power Density 17.0 W/in³
MTBF 200 kHrs per Bellcore SR-332 at 50°C ambient



ENVIRONMENTAL
Operating Temperature 0 to 55°C
Operating Humidity 20% to 90% RH, Non-condensing
Storage Temperature -40°C  to +70 °C
Operating Altitude Sea level to 5,000 M
Shock Operating 10G, no malfunction
Non-Operating 30G, no damage
Vibration Operating 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz
Non-Operating 0.02G²/Hz form 20Hz to 1kHz



EMC & SAFETY
Emissions EN55022, class A Conducted
EN55022, class A Radiated
Harmonic Currents EN61000-3-2
Voltage Flicker EN61000-3-3
EFT/Burst EN61000-4-4
Surge EN61000-4-5
Conducted Immunity EN61000-4-6
Safety Approvals UL/cUL, TUV, CB, CE, CCC, FCC



Output Minimum Load Maximum Load Condition Ripple & Noise
+12V 0.3A 41.66A   120mV p-p
+5Vsb 0A 3.0A 50mV p-p
