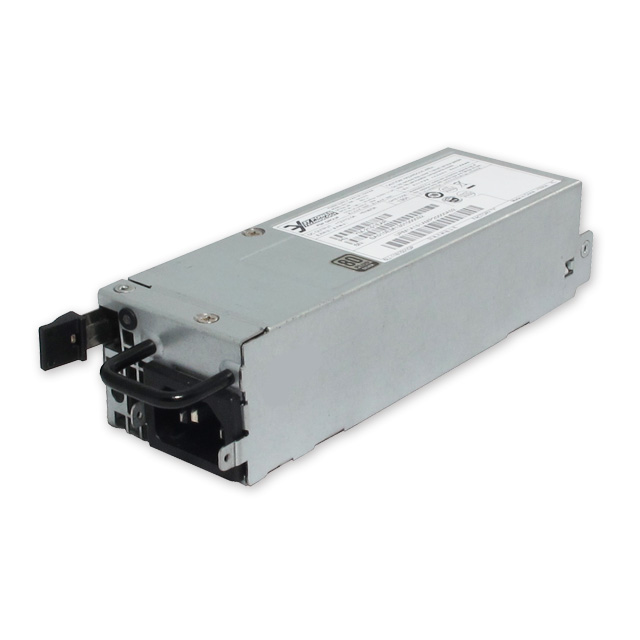

YM-2151EBR

ULTUVCBCECCCFCC

Feature

  • 150.0 (L) x 50.5 (W) x 40.0 (H) mm
  • N+1 Redundant
  • Support PMBus 1.1
  • No Minimum Load Required
  • Application for IPC/Storage/Embedded server/Networking

Introduction

Silver PMBus1.1

Content



INPUT
Input Voltage 90-264VAC,
Input Frequency 47-63Hz
Input Current 3.0A max at 115VAC,1.5A max at 230VAC
Inrush Current
Power Factor 0.98/115VAC,0.94/230VAC
Earth Leakage Current 1.5mA max at 240VAC / 50Hz



GENERAL
Efficiency 80 Plus SILVER
Power Density 8.14 W/in³
MTBF 100 kHrs per Bellcore SR-332 at 25°C ambient



ENVIRONMENTAL
Operating Temperature -5 to 50°C
Operating Humidity 85% RH, Non-condensing
Storage Temperature -40°C  to +70 °C
Operating Altitude Sea level to 5,000 M
Shock Operating 10G, no malfunction
Non-Operating 50G Trapezoidal Wave, Velocity change 4.3m/sec
Vibration Operating 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz
Non-Operating 0.02G²/Hz form 20Hz to 1kHz



EMC & SAFETY
Emissions EN55022, class B Conducted
EN55022, class B Radiated
Harmonic Currents EN61000-3-2
Voltage Flicker EN61000-3-3
EFT/Burst EN61000-4-4
Surge EN61000-4-5
Conducted Immunity EN61000-4-6
Safety Approvals UL/cUL, TUV, CB, CE, CCC, FCC



Output Minimum Load Maximum Load Condition Ripple & Noise
+12V 0A 12.5A   120mV p-p
+5Vsb 0A 3A 50mV p-p
