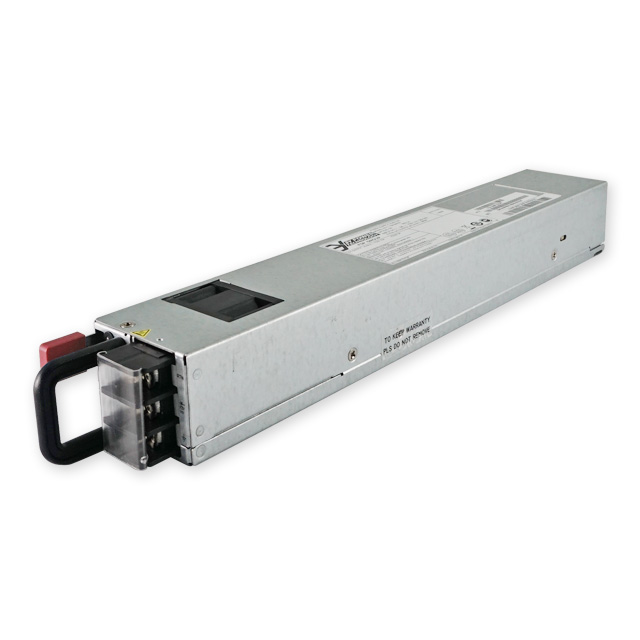

YM-2112GCR
Feature
- 300.0 (L) x 50.5 (W) x 40.0 (H) mm
- N+1 Redundant
- Support PMBus 1.2
- Application for IPC/Storage/Embedded server/Networking
Introduction
This industrial power supply with efficiency 89% and comes to offer the total power capacity up to 1100 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.
Content
| INPUT | |
| Input Voltage | -36 - -72VDC @850W -40 - -72VDC @1100W |
| Input Current | 34.0A / -40VDC,19.0A / -72VDC |
| Inrush Current | 100A max at -72VDC |
| Earth Leakage Current |
| GENERAL | |
| Efficiency | 89% at Max load of -48VDC |
| Power Density | 24.5 W/in³ |
| MTBF | 100 kHrs per Bellcore SR-332 at 25°C ambient |
| ENVIRONMENTAL | |
| Operating Temperature | -5 to 50°C |
| Operating Humidity | 85% RH, Non-condensing |
| Storage Temperature | -40°C to +70 °C |
| Operating Altitude | Sea level to 5,000 M |
| Shock Operating | 10G, no malfunction |
| Non-Operating | 50G Trapezoidal Wave, Velocity change 4.3m/sec |
| Vibration Operating | 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz |
| Non-Operating | 0.02G²/Hz form 20Hz to 1kHz |
| EMC & SAFETY | |
| Emissions | EN55032, class A Conducted EN55032, class A Radiated |
| Harmonic Currents | EN61000-3-2 |
| Voltage Flicker | EN61000-3-3 |
| EFT/Burst | EN61000-4-4 |
| Surge | EN61000-4-5 |
| Conducted Immunity | EN61000-4-6 |
| Safety Approvals | UL/cUL, TUV, CB, CE, CCC, FCC |
| Output | Minimum Load | Maximum Load | Condition | Ripple & Noise |
| +12V | 0A | 70A @850W 90.5A @1100W |
120mV p-p | |
| +5Vsb | 0A | 3.0A | 50mV p-p |
