YESM1300BM-2A00N01 | 3Y POWER TECHNOLOGY INC.

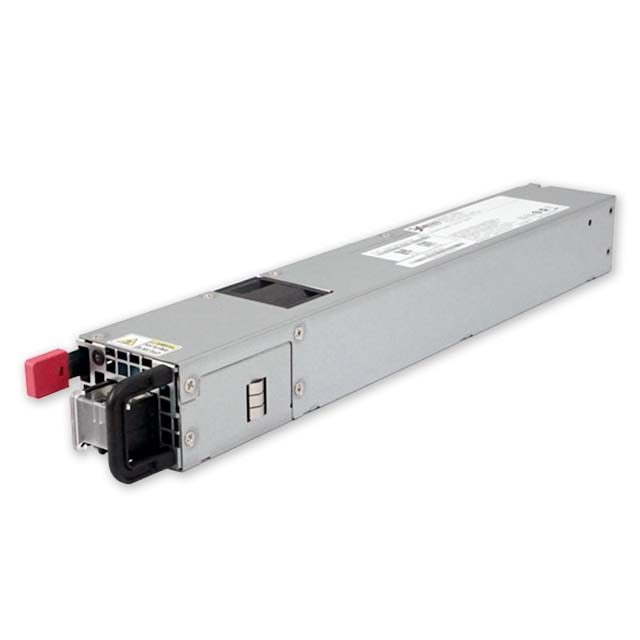

YESM1300BM-2A00N01

ULTUVCBCECCCFCC

Feature

  • 321.0 (L) x 50.5 (W) x 40.0 (H) mm
  • N+1 Redundant
  • Support PMBus 1.2
  • No Minimum Load Required
  • Application for IPC/Storage/Embedded server/Networking

Introduction

This industrial power supply with efficiency 90% and comes to offer the total power capacity up to 1300 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.

PMBus1.2

Content



INPUT
Input Voltage -40 - -75VDC
Input Current 40-25A / -40- -75VDC
Inrush Current 100A max at -75VDC
Earth Leakage Current



GENERAL
Efficiency 90% at Max load of -48VDC
Power Density 33.1W/in3
MTBF 100 kHrs per Telcordia SR-332 at 25°C ambient



ENVIRONMENTAL
Operating Temperature -5 to 50°C
Operating Humidity 90% RH, Non-condensing
Storage Temperature -40°C  to +70 °C
Operating Altitude Sea level to 5,000 M
Shock Operating 30G, 11mSec, half sine 3 axes
Non-Operating TBD
Vibration Operating 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz
Non-Operating 0.02G²/Hz form 20Hz to 1kHz



EMC & SAFETY
Emissions EN55032, class A Conducted
EN55032, class A Radiated
Harmonic Currents EN61000-3-2
Voltage Flicker EN61000-3-3
EFT/Burst EN61000-4-4
Surge EN61000-4-5
Conducted Immunity EN61000-4-6
Safety Approvals UL/cUL, TUV, CB, CE, CCC, FCC



Output Minimum Load Maximum Load Condition Ripple & Noise
+12V 1A 108A   120mV p-p
+5Vsb 0.1A 3.0A 50mV p-p
