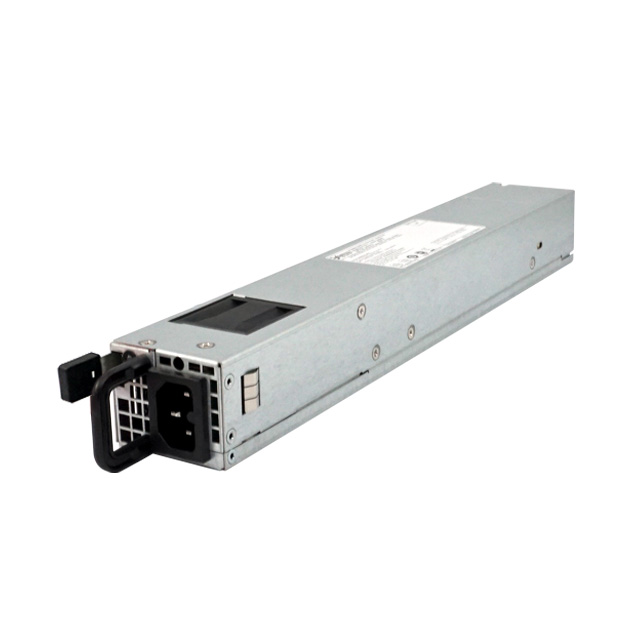

YESM1300AM-2A00P10

ULTUVCBCECCCFCC

Feature

  • 321.0 (L) x 50.5 (W) x 40.0 (H) mm
  • N+1 Redundant
  • Support PMBus 1.2
  • Hight Power Density 33.1 W/in3
  • Application for IPC/Storage/Embedded server/Networking

Introduction

This industrial power supply with 80 PLUS® Platinum efficiency rating and comes to offer the total power capacity up to 1300 Watts.

Platinum PMBus1.2

Content



INPUT
Input Voltage 100-240VAC @1000W
110-240VAC/190-285VDC @1100W
200-240VAC/285-310VDC @1300W
Input Frequency 47-63Hz
Input Current 12A / 90-240VAC,7.5A / 200-240VAC,7A / 190-285VDC,5.5A / 285-310VDC
Inrush Current 60A max at 240VAC
Power Factor 0.95 at 115VAC / 60Hz,0.95 at 230VAC / 50Hz
Earth Leakage Current 1.75mA max at 240VAC



GENERAL
Efficiency 80 Plus PLATINUM certified,Highest efficiency 94% at 230VAC
Power Density 33.1 W/in³
MTBF 100 kHrs per Telcordia SR-332 at 25°C ambient



ENVIRONMENTAL
Operating Temperature -5 to 50°C
Operating Humidity 90%, Non-condensing
Storage Temperature -40°C  to +70 °C
Operating Altitude Sea level to 5,000 M
Shock Operating 10G, no malfunction
Non-Operating 50G Trapezoidal Wave, Velocity change 4.3m/sec
Vibration Operating 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz
Non-Operating 0.02G²/Hz form 20Hz to 1kHz



EMC & SAFETY
Emissions EN55022, class B Conducted
EN55022, class B Radiated
Harmonic Currents EN61000-3-2
Voltage Flicker EN61000-3-3
EFT/Burst EN61000-4-4
Surge EN61000-4-5
Conducted Immunity EN61000-4-6
Safety Approvals UL/cUL, TUV, CB, CE, CCC, FCC



Output Minimum Load Maximum Load Condition Ripple & Noise
+12V 0A 83A @1000W
91A @1100W
108A @1300W
  120mV p-p
+5Vsb 0A 3.0A 50mV p-p
