YH5851-1EAR2A0D | 3Y POWER TECHNOLOGY INC.

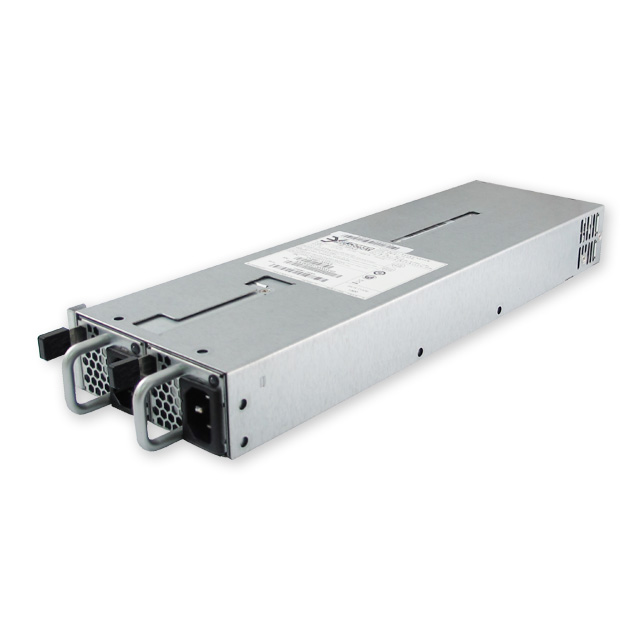

YH5851-1EAR2A0D

ULTUVCBCECCCFCC

Feature

  • 355.0 (L) x 106.0 (W) x 41.5 (H) mm
  • 1+1 Redundant
  • Support PMBus 1.2
  • No Minimum Load Required
  • Application for IPC/Storage/Embedded server/Networking

Redundant Module: YM-2851VCR

Introduction

This industrial power supply with 80 PLUS® Platinum and comes to offer the total power capacity up to 850 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.

Platinum PMBus1.2

Content



INPUT
Input Voltage 90-264VAC,190-310VDC
Input Frequency 47-63Hz
Input Current 12.0A / 115VAC,6.0A / 230VAC
Inrush Current 60A max at 264VAC
Power Factor 0.95/115VAC,0.95/230VAC
Earth Leakage Current 3.5mA  max for each power supply at 240VAC



GENERAL
Efficiency 80Plus Platinum
Power Density 8.9 W/in³
MTBF 100 kHrs per Bellcore SR-332 at 25°C ambient



ENVIRONMENTAL
Operating Temperature -5 to 50°C
Operating Humidity 85% RH, Non-condensing
Storage Temperature -40°C  to +70 °C
Operating Altitude Sea level to 5,000 M
Shock Operating 10G, no malfunction
Non-Operating 50G Trapezoidal Wave, Velocity change 4.3m/sec
Vibration Operating 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz
Non-Operating 0.02G²/Hz form 20Hz to 1kHz



EMC & SAFETY
Emissions EN55022, class A Conducted
EN55022, class A Radiated
Harmonic Currents EN61000-3-2
Voltage Flicker EN61000-3-3
EFT/Burst EN61000-4-4
Surge EN61000-4-5
Conducted Immunity EN61000-4-6
Safety Approvals UL/cUL, TUV, CB, CE, CCC, FCC



Output Minimum Load Maximum Load Condition Ripple & Noise
+3.3V 0A 25A +3.3V ~ +5V combined power ≦ 210W 50mV p-p
+5V 0A 36A 50mV p-p
+12V 0A 70A 120mV p-p
-12V 0A 0.5A 120mV p-p
+5Vsb 0A 3.0A 50mV p-p
