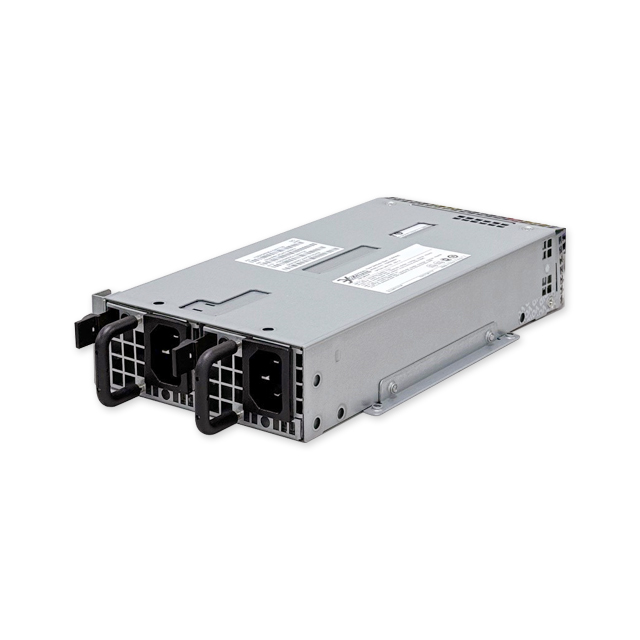

YSER0850EH-5A00T20
Feature
- 220.0 (L) x 106.0 (W) x 40.5 (H) mm
- 1+1 Redundant
- Support PMBus 1.2
- No Minimum Load Required
- Application for IPC/Storage/Embedded server/Networking/AI server
Redundant Module: YSER0850EM-2A00T10
Introduction
This industrial power supply with 80 PLUS® Platinum and comes to offer the total power capacity up to 850 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.
Content
| INPUT | |
| Input Voltage | 100-240VAC@700W, 180-240VAC@850W |
| Input Frequency | 47-63Hz |
| Input Current | 10.0A / 100-240VAC, 6.0A / 180-240VAC |
| Inrush Current | 40A max at 264VAC |
| Power Factor | 0.97 at 120VAC to 240VAC & 50Hz / 60Hz |
| Earth Leakage Current | 1.5 mA max for each power supply at 240VAC/60Hz |
| GENERAL | |
| Efficiency | 80 Plus TITANIUM certified,Highest efficiency 96% at 230VAC |
| Power Density | 14.7 W/in³ |
| MTBF | 100 kHrs per Bellcore SR-332 at 25°C ambient |
| ENVIRONMENTAL | |
| Operating Temperature | -5 to 50°C |
| Operating Humidity | 5%~85% RH, Non-condensing |
| Storage Temperature | -40°C to +70 °C |
| Operating Altitude | Sea level to 5,000 M |
| Shock Operating | 10G, no malfunction |
| Non-Operating | 50G Trapezoidal Wave, Velocity change 4.3m/sec |
| Vibration Operating | 0.00046G²/Hz at 10Hz, 0.0052G²/Hz at 30Hz |
| Non-Operating | 0.052G²/Hz at 200Hz, 0.003G²/Hz at 500Hz |
| EMC & SAFETY | |
| Emissions | EN55022, class A Conducted EN55022, class A Radiated |
| Harmonic Currents | EN61000-3-2 |
| Voltage Flicker | EN61000-3-3 |
| EFT/Burst | EN61000-4-4 |
| Surge | EN61000-4-5 |
| Conducted Immunity | EN61000-4-6 |
| Safety Approvals | UL/cUL, TUV, CB, CE, CCC, FCC |
| Output | Minimum Load | Maximum Load | Condition | Ripple & Noise |
| +3.3V | 0A | 20A | +3.3V ~ +5V combined power ≦ 140W | 50mV p-p |
| +5V | 0A | 20A | 50mV p-p | |
| +12V | 0A | 58.33A@700W 70.83A@850W |
120mV p-p | |
| -12V | 0A | 0.5A | 120mV p-p | |
| +5Vsb | 0A | 3.0A | 50mV p-p |
