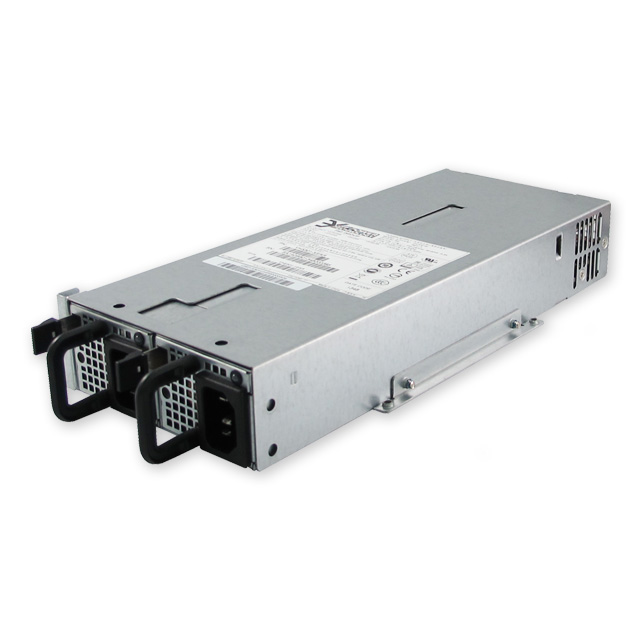

YH5301-1MAR2A0D

ULTUVCBCECCCFCC

Feature

  • 260.5 (L) x 106.0 (W) x 41.5 (H) mm
  • 1+1 Redundant
  • Support PMBus 1.2
  • No Minimum Load Required,
  • Application for IPC/Storage/Embedded server/Networking

Redundant Module: YM-2301EAR

Introduction

Silver PMBus1.2

Content



INPUT
Input Voltage 90-264VAC
Input Frequency 47-63Hz
Input Current 5.0A max at 115VAC,3.0A max at 230VAC
Inrush Current 40A max at 115VAC,60A max at 230VAC
Power Factor 0.90 at 115VAC / 60Hz,0.90 at 230V / 50Hz
Earth Leakage Current 3.5mA max at 240VAC / 50Hz



GENERAL
Efficiency 80 Plus SILVER certified,Highest efficiency 89% at 230VAC
Power Density
MTBF 100 kHrs per Bellcore SR-332 at 25°C ambient



ENVIRONMENTAL
Operating Temperature -5 to 50°C
Operating Humidity 85% RH, Non-condensing
Storage Temperature -40°C  to +70 °C
Operating Altitude Sea level to 5,000 M
Shock Operating 10G, no malfunction
Non-Operating 50G Trapezoidal Wave, Velocity change 4.3m/sec
Vibration Operating 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz
Non-Operating 0.02G²/Hz form 20Hz to 1kHz



EMC & SAFETY
Emissions EN55022, class B Conducted
EN55022, class B Radiated
Harmonic Currents EN61000-3-2
Voltage Flicker EN61000-3-3
EFT/Burst EN61000-4-4
Surge EN61000-4-5
Conducted Immunity EN61000-4-6
Safety Approvals UL/cUL, TUV, CB, CE, CCC, FCC



Output Minimum Load Maximum Load Condition Ripple & Noise
+3.3V 0A 20A +3.3V ~ +5V combined power ≦ 140W 50mV p-p
+5V 0A 20A 50mV p-p
+12V 0A 24A 120mV p-p
-12V 0A 0.5A 120mV p-p
+5Vsb 0A 3.0A 50mV p-p
