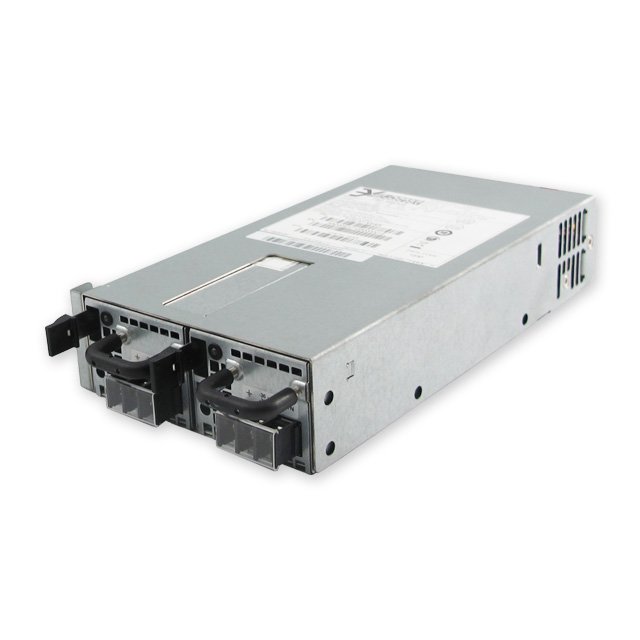

YH5151-1FBR0A2D
Feature
- 205.0 (L) x 106.0 (W) x 41.5 (H) mm
- 1+1 Redundant
- Support PMBus 1.1
- Application for IPC/Storage/Embedded server/Networking
Redundant Module: YM-2151FBR
Introduction
This industrial power supply with efficiency 75% and comes to offer the total power capacity up to 150 Watts, and provides PMbus features, which makes it to be able communicate with motherboard.
Content
| INPUT | |
| Input Voltage | -36 - -72VDC |
| Input Current | 6.0A / -36VDC, 1.8A / -72VDC |
| Inrush Current | 100A max at -72VDC |
| Earth Leakage Current | 3.5mA max for each power supply at -72VDC |
| GENERAL | |
| Efficiency | 75% at Max load of -48VDC |
| Power Density | |
| MTBF | 100 kHrs per Bellcore SR-332 at 25°C ambient |
| ENVIRONMENTAL | |
| Operating Temperature | -5 to 50°C |
| Operating Humidity | 85% RH, Non-condensing |
| Storage Temperature | -40°C to +70 °C |
| Operating Altitude | Sea level to 5,000 M |
| Shock Operating | 10G, no malfunction |
| Non-Operating | 50G Trapezoidal Wave, Velocity change 4.3m/sec |
| Vibration Operating | 0.01G²/Hz at 10Hz, 0.02G²/Hz at 20Hz |
| Non-Operating | 0.02G²/Hz form 20Hz to 1kHz |
| EMC & SAFETY | |
| Emissions | EN55022, class B Conducted EN55022, class B Radiated |
| Harmonic Currents | EN61000-3-2 |
| Voltage Flicker | EN61000-3-3 |
| EFT/Burst | EN61000-4-4 |
| Surge | EN61000-4-5 |
| Conducted Immunity | EN61000-4-6 |
| Safety Approvals | UL/cUL, TUV, CB, CE, CCC, FCC |
| Output | Minimum Load | Maximum Load | Condition | Ripple & Noise |
| +3.3V | 0.2A | 15A | 50mV p-p | |
| +5V | 0.1A | 15A | 50mV p-p | |
| +12V | 0A | 12.5A | 120mV p-p | |
| -12V | 0A | 0.5A | 120mV p-p | |
| +5Vsb | 0A | 3.0A | 50mV p-p |
